In this article we will examine how to recover video files from the network video recorder Hikvision DS-7608NI in a macOS environment. We will consider typical data loss scenarios: accidental deletion of individual files or entire folders, hard drive formatting, and corruption of the HikvisionFS file system. We will also separately address situations related to hardware failures — drive failure or malfunction of the recorder itself.

Contents

• Hikvision DS-7608NI
• STEP 1. Video recovery in case of device failure
• STEP 2. Recovering deleted videos
• STEP 3. Recovery after formatting
• Conclusion
• Questions and answers
• Comments

Recorders are a key component of video surveillance systems, providing continuous recording and storage of important information. One of the popular models on the market is the Hikvision DS-7608NI, widely used in both residential and commercial security systems. The device operates with a proprietary file system, HikvisionFS, optimized for storing video data.

Despite the reliability of the hardware, users may face loss of video recordings. Causes can include accidental deletion, drive formatting, power failure, file system corruption, or drive malfunction. In such situations, the recorder’s built-in tools often do not allow data recovery, which necessitates the use of specialized methods and software.

In this article we will cover how to recover recordings from the Hikvision DS-7608NI recorder, the characteristics of the HikvisionFS file system, and which tools and approaches will help restore lost video data as efficiently as possible.

Go to view

📡 How to recover a Video File from Non-Operational Video Recorder (Hikvision DS-7104NI-Q1/4P) 📡

Hikvision DS-7608NI

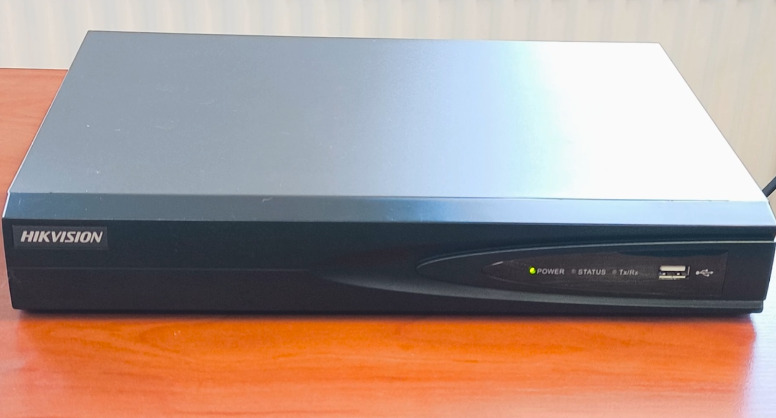

The network video recorder Hikvision DS-7608NI is designed to build a quality IP camera surveillance system. This model supports connection of up to eight cameras with resolutions up to 6 megapixels, providing high image detail and clear archive playback. The NVR supports standard network protocols and allows remote access over the local network or the Internet.

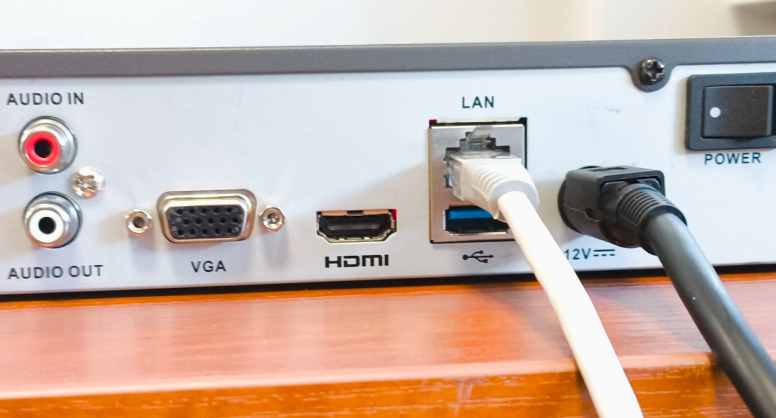

In addition to the Ethernet network port, the model is equipped with HDMI and VGA video outputs for monitor connection, an audio input, and USB ports for connecting a mouse, external storage, or archive backup.

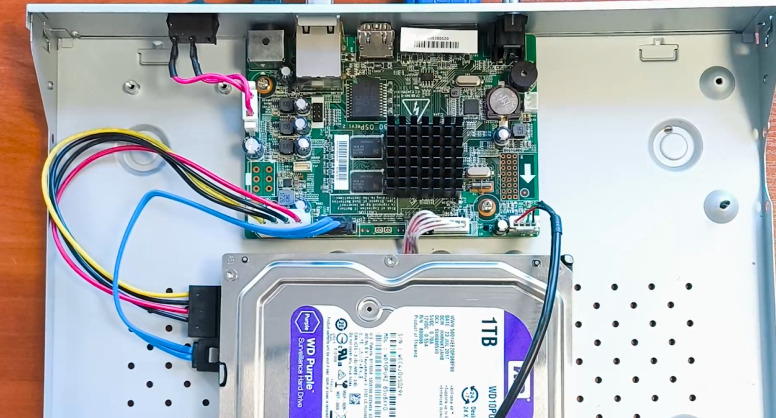

Internally, there is one SATA interface for installing the hard drive that stores the video data.

The Hikvision DS-7608NI recorder supports proprietary monitoring and management software, allowing archive browsing, video export, and system administration from a computer.

When working with macOS, connection is performed via the web interface or client software, and in case of recorder failure the hard drive can be connected directly to a Mac for partition structure analysis and subsequent recovery of video files using specialized software.

STEP 1. Video recovery in case of device failure

Let us consider cases when video files on the disk were accidentally deleted via the viewer or the device web interface, or when the recorder failed and direct network access to the archive becomes impossible. Such situations may occur due to abrupt power loss, voltage fluctuations, or improper shutdown, which can lead to partition structure damage or corruption of the video archive index table.

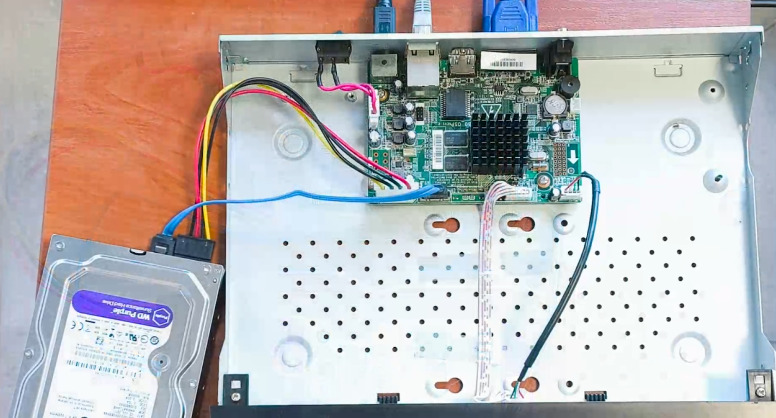

In such cases, first power off the recorder and carefully remove the hard drive. On this Hikvision model you need to remove the top cover. Once the drive is removed, use an external SATA adapter or dock station to connect it to the Mac, ensuring a safe connection without risk of additional data loss.

After connecting, the Mac will automatically detect the disk as a physical drive. Do not initialize it if macOS prompts you — Hikvision uses a proprietary file system.

STEP 2. Recovering deleted videos

For safe recovery we recommend using Hetman Partition Recovery, which recognizes the HikvisionFS file system and allows correct recovery of deleted or corrupted video files.

The software scans the disk and saves found files to a safe location. This works for both accidental deletion and hardware failures, since all data is stored on the physical disk regardless of the recorder state. Also ensure that the target drive for recovered data has sufficient free space.

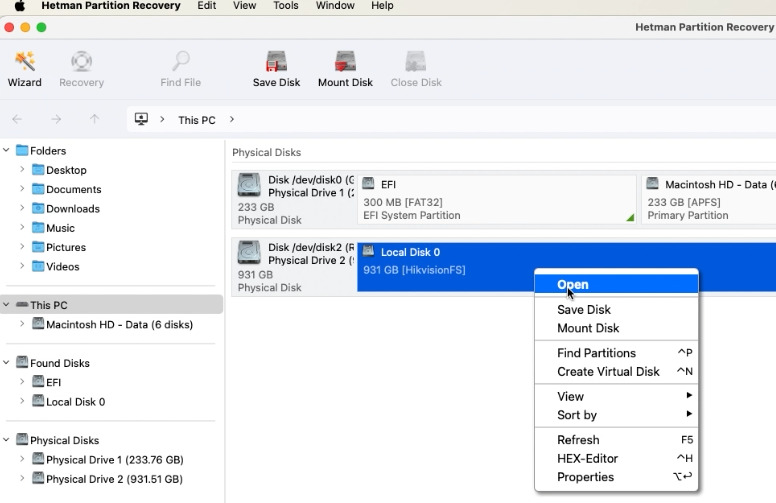

After launching the software, your disk will be shown on the main screen with the HikvisionFS file system indicated, along with total capacity and available partitions. To start recovery, select the entire disk or the specific partition with a left click and start scanning by double-clicking or via the context menu by choosing Open.

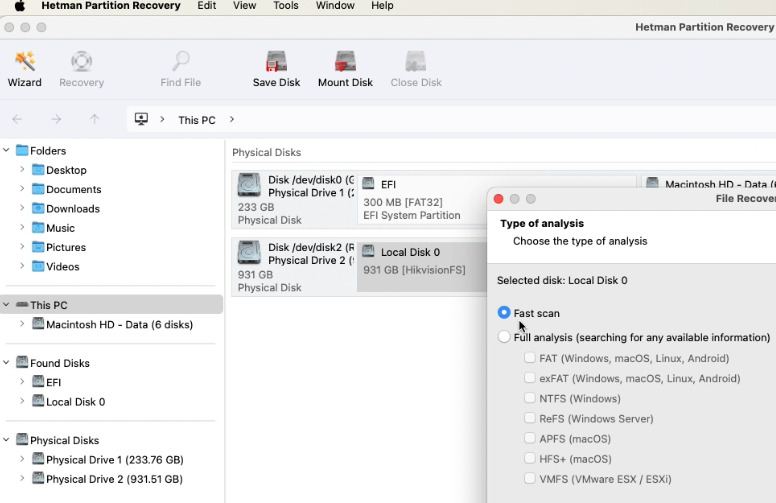

If you need to recover deleted files or folders, it is recommended to use the Fast scan mode. In this mode the program scans the file system at the metadata and directory level, detects user-deleted items, and assesses their integrity.

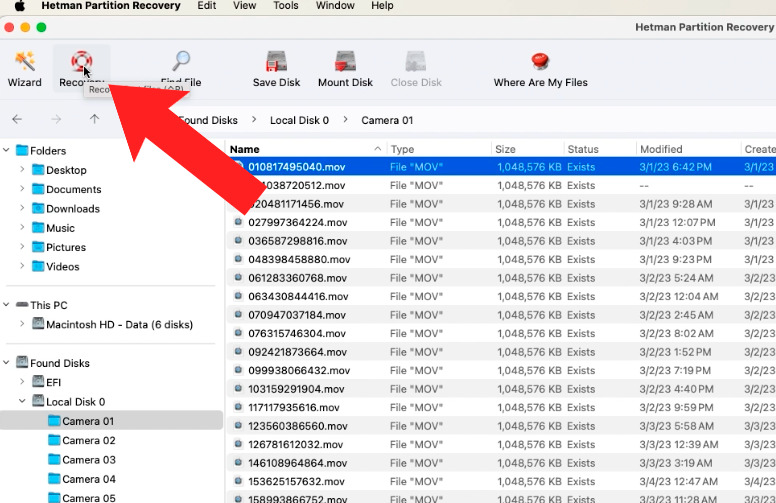

After the scan completes, the results window will display a list of objects available for recovery. Select the required folders and files and click the Recovery button located in the upper left of the Main Menu.

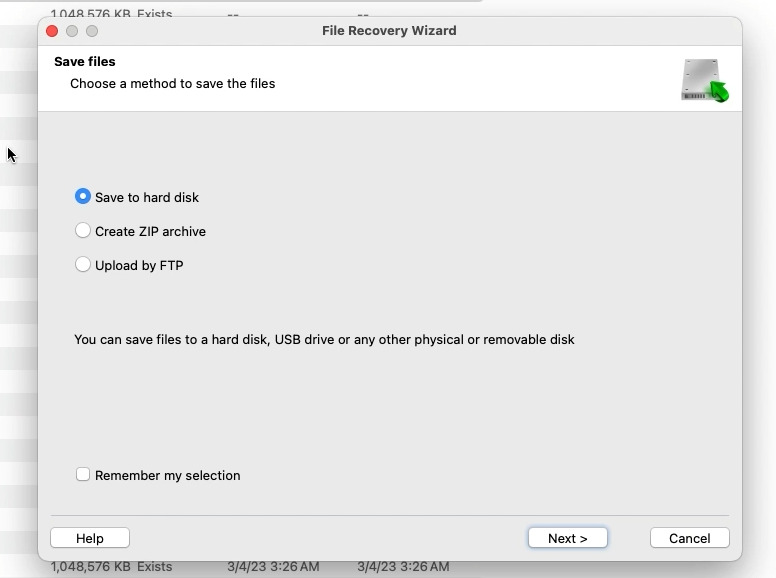

In the dialog that opens, specify the destination for recovered data by clicking Next, then Recovery.

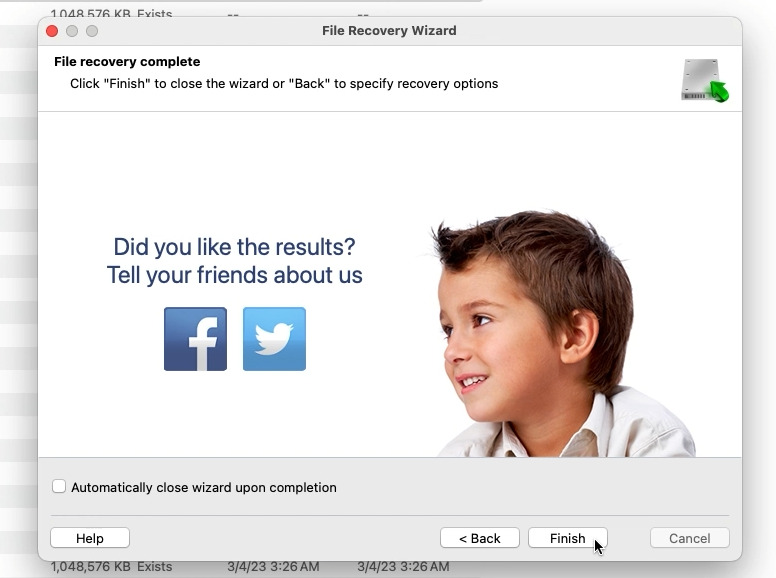

After the saving process completes, click Finish. Your data is now fully recovered and available for use.

STEP 3. Recovery after formatting

In surveillance systems, cyclic recording is performed automatically: once storage fills up, the recorder starts overwriting older video files with new ones. Older recordings may be partially or completely lost.

Additionally, a failed Firmware update or an internal software fault in the recorder can render the archive inaccessible, even if the drive itself remains physically intact.

In such cases it is recommended to use the Full Scan mode. In this mode the program performs a bit-level analysis of the entire disk surface bypassing the damaged or inaccessible file system, reconstructs data structures at a low level, and provides the maximum possible recovery even from heavily damaged or partially overwritten partitions.

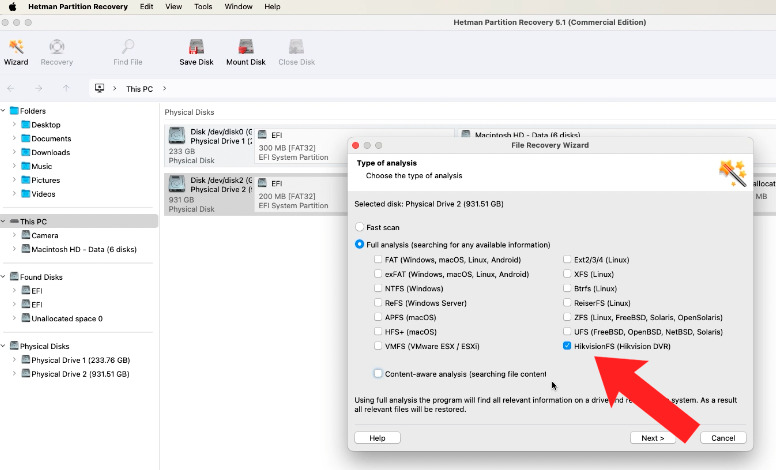

In the File Recovery Wizard window, select the Full Scan mode and specify the HikvisionFS file system from the list. Click Next to start the scan.

Note that full scanning may take a significant amount of time depending on drive capacity.

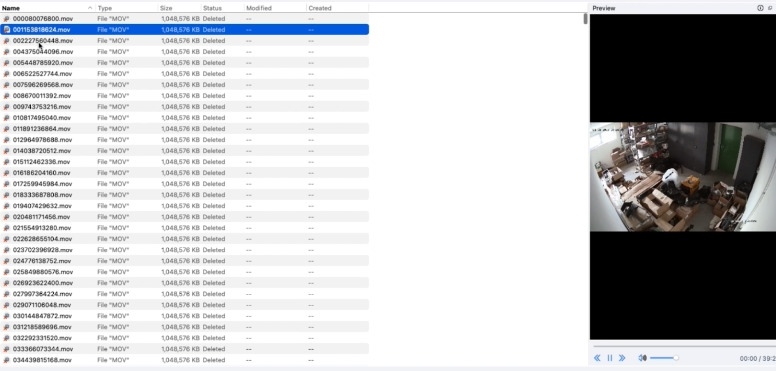

The Main screen will display information about data that previously resided on your disk and can be recovered. If necessary, use the Preview function to view file contents in the right-hand pane.

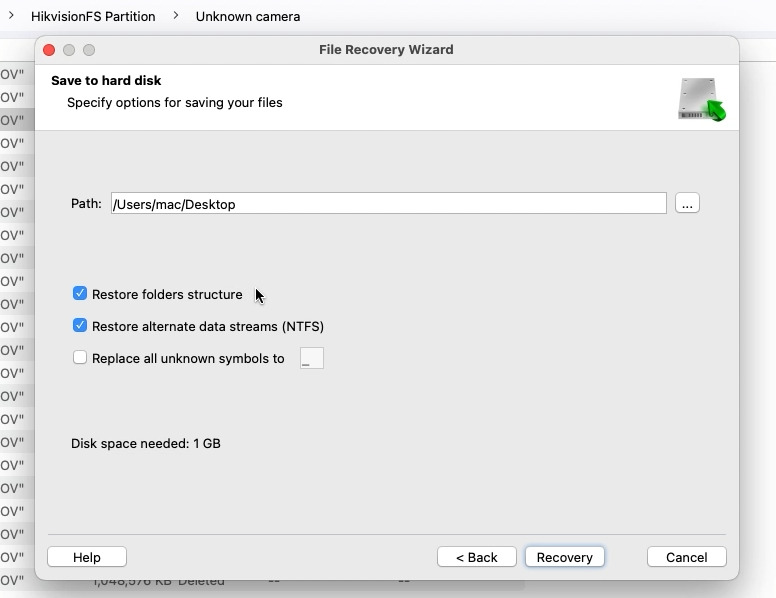

Select the directories and files to recover. In the next dialog specify the path for saving recovered data and confirm the action by clicking Recovery.

After the operation completes, the program will report successful recovery of data from your drive.

Conclusion

Recovering video recordings from the Hikvision DS-7608NI network recorder using the HikvisionFS file system is entirely feasible but requires the correct approach and use of specialized tools. Due to the proprietary data storage structure, standard operating system utilities do not allow access to the videos, so professional recovery software plays a key role.

The success of recovery largely depends on the cause of data loss: accidental deletion or file system failure generally have high chances of recovery, whereas physical drive damage or data overwriting significantly complicate the process. It is also important to minimize any operations on the storage after data loss to avoid overwriting video files.

Therefore, when encountering issues accessing recordings from the Hikvision DS-7608NI, it is recommended to promptly stop using the device, connect the drive to a PC, and perform analysis using appropriate software. This approach maximizes the chances of successful recovery of important video data.
